Superior Busbar Flexibility & Performance
J-Link tinned copper flexible busbar: The best alternative to cable connections and flexible bars.
For connections you can trust, Teknomega’s J-Link flexible busbar is designed to provide the flexibility and maneuverability for maximum confidence during installation and a reliable, safe and long-lasting electrical contact once in operation.
Providing a quick and convenient solution for electrical connections from 125 to 630 Amps, the J-Link range features super-flexible TPE insulation for maximum operating temperature of 140 °C.
You can order J-Link in a wide range of dimensions that are uniquely designed to suit typical applications and most popular box switches available in New Zealand.
J-Link in action
Take a look at what switchboard specialists ISL Ltd’s Matt Pehi thought after using Teknomega’s J-Link in a recent MCC project.
Built for NZ applications

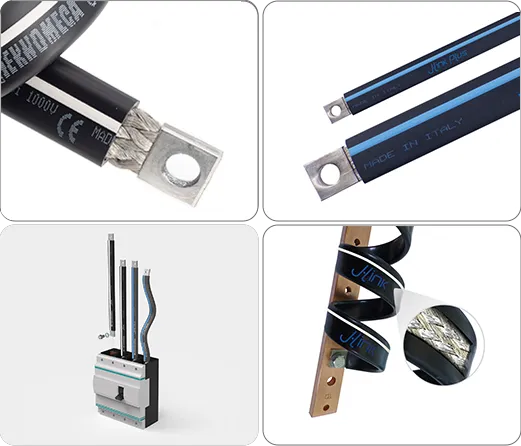

Essential for reliable long-term performance in New Zealand climates, J-Link is a ready-to-use flexible prefabricated busbar made of tinned copper braid. Its construction ensures maximum connectivity with terminals made from pressed tinned copper tube and the wide range of sizes and dimensions available.
Quality and performance is assured with J-Link’s super-thick, highly resistant and self-extinguishing insulation. While delivering maximum safety and performance, it remains flexible enough to handle all necessary radiuses to sit comfortably when pushing in cells or closing bus chambers.
J-Link is not only more flexible than cables with a similar cross section, its tinned copper braid also provides superior ampacity compared to similar sized cable. This means the fit-for-purpose busbar you order will weigh less and take up less space inside panel boards and bus chambers.
At A Glance
- Tinned copper braid with pressed tinned copper terminals
- TPE ultra-thick & ultra-flexible insulation
- Ideal for electrical connections between 125 A and 630 A
- Cross sections from 25mm² to 240mm²
- Lengths from 230mm to 1030 mm
- Large bend-radius and shape retention
- Superior ampacity compared to equal cross section cables
- Halogen free, self-extinguishing (UL 94-V0) insulation
- No measuring, cutting, stripping, crimping or lugs
- Excellent heat reduction and short-circuit resistance
Why Teknomega J-Link?
Beyond the obvious safety, performance and installation advantages, choosing J-Link will deliver huge advantages to every project:
Time Saving:
By removing cable measuring, cutting, stripping and crimping the time that J-Link can save on each project makes a huge difference.
Space Saving:
With its light weight and lean construction, you will also enjoy more room inside panel boards and bus chambers.
Cost Saving:
Vastly reduced prep time, less tooling, no lugs and faster installation all combine to make J-Link a positive addition to project costs.
Fit-for-purpose:
Two insulation options and a wide range of lengths and diameters means ultra safe, high performing flexible busbar will arrive tailored to your project requirements.
