In industrial electrical installations, efficiency often comes down to how many hands are needed to get the job done. The SmartFit Cable Gland has been engineered specifically for single-person installation by eliminating the need for locknuts, rear access or a second installer.
Tight spaces, restricted rear access and repetitive fitting tasks can slow projects down and introduce unnecessary complexity. The SmartFit Cable Gland has been designed to remove these pain points and deliver a faster, cleaner and more reliable approach to cable entry without compromising protection or compliance.
Designed for modern control panels, junction boxes and industrial equipment, SmartFit transforms cable management into a faster, cleaner and more reliable process, reducing labour time while maintaining IP68-rated protection.
Take a Look
A New Standard in Installation Efficiency

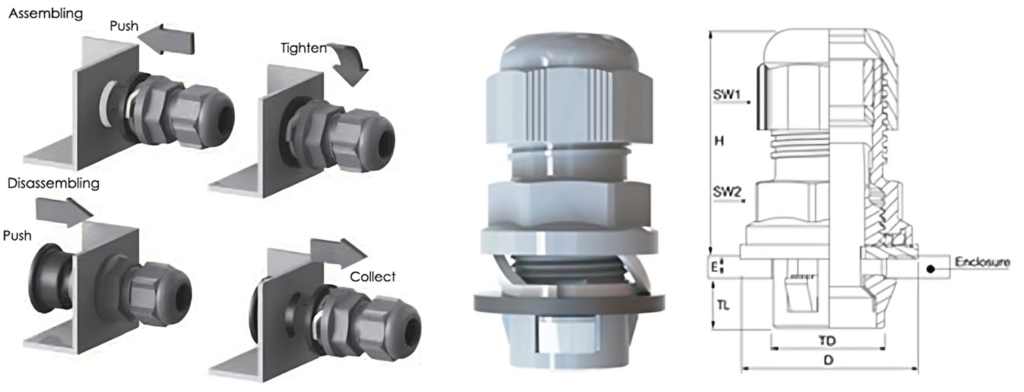

The SmartFit cable gland replaces traditional locknut-based designs with a revolutionary snap-in mechanism. Instead of reaching behind enclosures to secure locknuts, installers simply push the gland into place and insert the cable with no rear access required.
This design enables single-person, single-handed installation, making it ideal for control panels, junction boxes and industrial equipment where space is limited or access is awkward. The result is a dramatic reduction in installation time – up to 75% faster than conventional cable glands.
Built for Industrial Environments
Despite its simplicity, SmartFit delivers serious protection. Rated IP68 to 5 bar, it provides complete defence against dust and water ingress, ensuring long-term cable integrity in both indoor and outdoor environments.

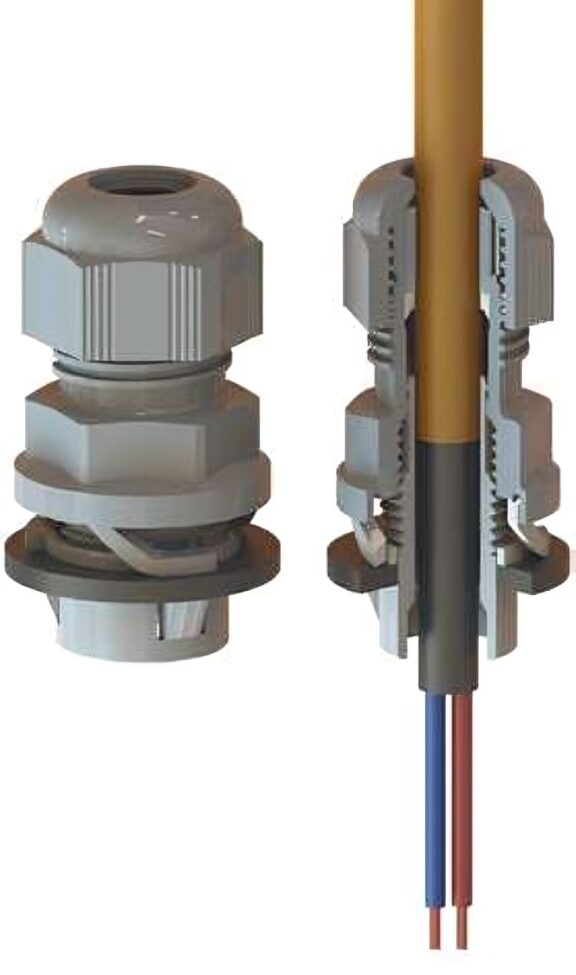

High-quality nylon construction and chloroprene rubber seals provide durable strain relief and environmental protection, even in demanding operating conditions ranging from -20°C to +100°C.
Designed to Fit Where Others Can’t
SmartFit glands are compatible with wall thicknesses from 0.5mm to 4.0mm, covering the vast majority of industrial enclosures without the need for adaptors or modification. This makes them particularly valuable in retrofit projects or compact assemblies where conventional glands struggle.
Removal is just as straightforward, using a dedicated adaptor tool—allowing flexibility without damaging the enclosure.
Product Options and Configurations
SmartFit cable glands are available in both black and grey finishes, offering a professional appearance across a wide range of applications. Designed for cable diameters from 6–12mm, these M20 glands suit a wide variety of industrial cable management needs.
Available sizes and pack quantities include:
Grey: Black:
20mm (pack of 10) 20mm (pack of 10)
25mm (pack of 5) 25mm (pack of 5)
32mm (pack of 2)
40mm (each)
The Smarter Way to Install Cable Glands
For installers, panel builders and maintenance teams looking to improve efficiency without sacrificing quality or compliance, the Smartfit Quick-Fit Cable Gland represents a genuine step forward. Faster installation, easier access, and proven protection—designed for the realities of modern industrial environments.
