Meet the new PS6R series from IDEC. They’re the first DIN rail-mounted industrial power supplies that expand to provide multiple output voltages from a single unit. These compact units pack big performance into remarkably small spaces. Add a 10W DC-DC converter unit or add two branch terminals —without sacrificing efficiency or performance.
Big performance in a remarkably small space
- 93% Efficiency
- Plug-In output modules for additional output voltages
- Plug-in branch terminals for additional terminals
- Power range: 120W, 240W, 480W
- Input voltage: 100 to 240V AC (voltage range: 85 to 264V AC/110 to 350V DC
- Up to 70°C (158°F operating temperature
- DC low LED indicator and output contact
- The terminals are captive spring-up screws. Ring or fork terminals can be used
- Finger-safe construction prevents electric shocks
- Panel mount bracket and side-mount panel mounting bracket. Can be attached to a DIN rail or directly to a panel surface
Flexibility, expandability, versatility
Add Wiring Terminals
Run out of terminal slots? No problem! Simply add a branch terminal module to get two additional + and – slots.
Multiple Voltage Output
Additional DC-DC converter units can be added to give you up to three separate output voltages – 5V, 12, and 15V
Energy-saving 93% Efficiency, Easy Maintenance and Enhanced Safety

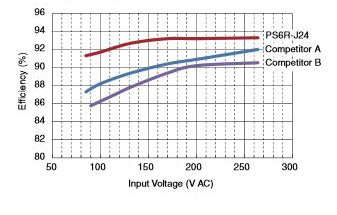

Energy-saving 93% Efficiency

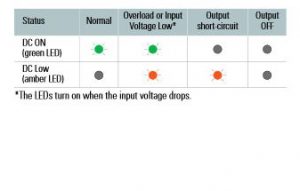

Easy Maintenance – LED Indicator

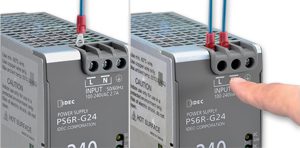

Finger-safe prevents electric shocks
To learn more about the IDEC PS6R series, visit the IDEC website
